The lithium battery industry is constantly changing, and battery technology is continually updating and iterating. The 46 series large cylindrical batteries have shown their brilliance with their safety performance advantages, lower manufacturing costs, and other benefits. Nowadays, their installation scale and speed are expanding and accelerating, and they will become one of the important development directions of next-generation battery technology.

On the afternoon of November 11, The Large Cylindrical Battery Industry Summit hosted by FHS Group opened on schedule by Yangcheng Lake, with the theme of “Riding the Beacon, Joining the Future”. The summit invited multiple industry experts, scholars, and related enterprises to jointly discuss the current development status, challenges, and future development direction of the large cylindrical battery industry.

The summit began with Mr. Yang Ping, Chairman and General Manager of FHS Group, delivering a welcome speech as the host, expressing gratitude to each guest for their attendance and expressing his hope that through this summit, they could have in-depth exchanges and dialogues with industry experts, scholars, and relevant enterprise leaders, strengthen cross-border cooperation and knowledge sharing, and work together to promote innovation and development in the large cylindrical battery industry, contributing to the future development of the lithium battery industry.

Dr. Yan Chenglin, the selected candidate for the National Major Leading Talents Project, as the Honorary Dean of FHS Group Research Institute, expressed his earnest expectations for establishing closer industry-university-research-application cooperation in the future during the summit theme introduction. He hoped that this summit could promote the deep integration of academic research, technological innovation, and the development of the large cylindrical battery industry from all walks of life.

Subsequently, Ms. Cao Juan, the Operations Director of FHS Group, introduced the group’s overview to the guests present. The solid data and technological strength demonstrate FHS Group’s unwavering confidence in the development path of large cylindrical batteries.

At the meeting, Gao Xiaobing, the President of the High-tech Industry Research Institute, was invited to give a speech on the market prospects of large cylindrical batteries: “Compared to square, soft pack, and previous small cylindrical batteries, the advantages of large cylindrical batteries are reflected in safety, energy density, rate, and cost. In terms of safety, large cylindrical batteries have the characteristics of thermal runaway propagation blocking, good sealing, and high product consistency, and have certain advantages over square and soft pack batteries. In terms of cost, without considering yield loss, the manufacturing cost of large cylindrical batteries is 0.07 yuan/Wh for 100 PPM and 0.04 yuan/Wh for 300 PPM. The market prospects are broad. “

“Under the trend, various battery manufacturers were laying out their own 46 series large cylindrical battery cells. However, in promoting the mass production of large cylindrical batteries, enterprises need to pay attention to the yield rate and key technologies such as welding and dry electrodes,” stated Mr. Ma Yingbao, a former senior executive of IBM’s well-known consulting expert, in a keynote speech on the current process and production path of cylindrical batteries.

Subsequently, Dr. Que Zhili and Dr. Huang Fuchang, the R&D directors of FHS Group, gave two special presentations on the current research and development achievements of the research institute: “The Road of FHS Large Cylindrical Battery Equipment Innovation” and “FHS Magnetic Suspension Products Assisting in Efficient Coordinated Transmission of Cylindrical Battery Production.”

After the speech, experts and scholars held a roundtable dialogue on the challenges and opportunities for the future of large cylindrical batteries, and the atmosphere of on-site discussions was lively.

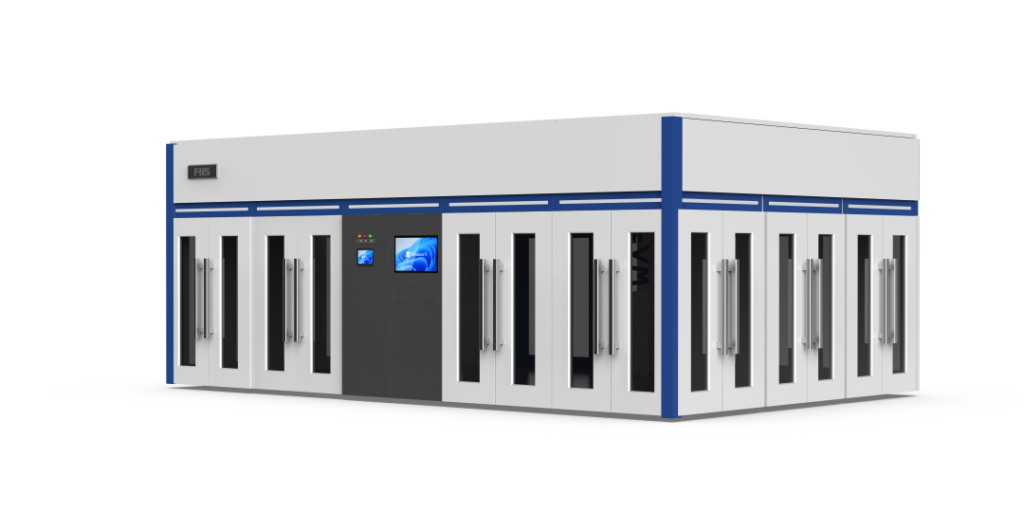

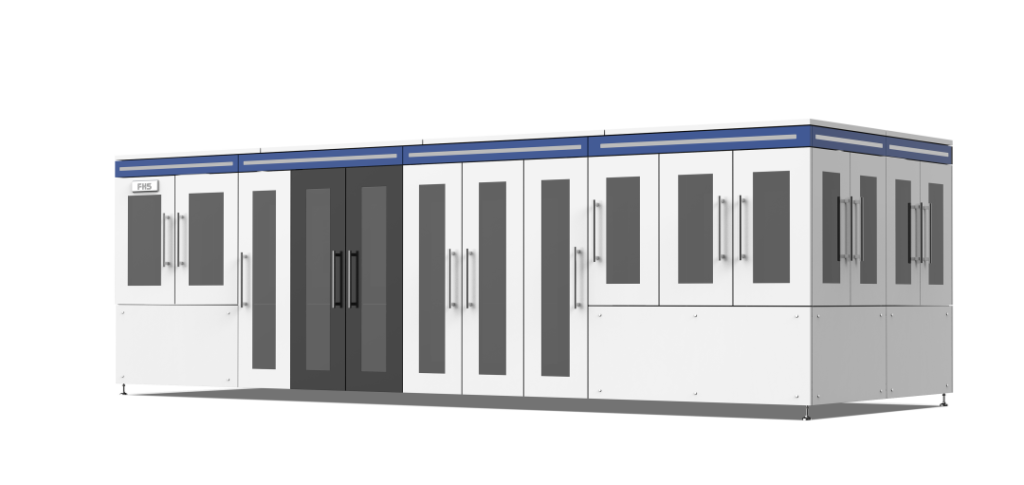

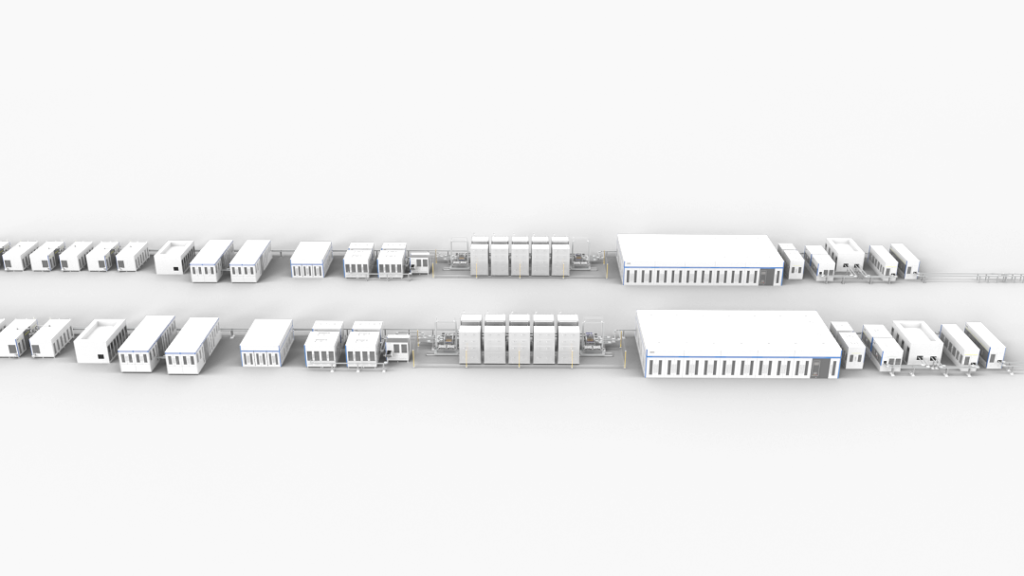

Introduction to 4680 large cylindrical battery equipment line

The main machines for this line are winding machines (including flattening and kneading), X-Ray detection machines, positive and negative current collector laser welding machines, high-speed shell insertion machines, high-speed positive electrode ultrasonic torque welding machines, high-speed negative electrode and shell welding machines, high-speed groove rolling machines, baking, equal pressure injection machines, high-speed non-polar cover plate assembly machines, high-speed sealing machines, X-Ray detection machines, high-speed cleaning machines, high-speed film coating machines (optional), high-speed disc loading machines, etc. This part of the equipment automatically realizes the binding and storage of barcode information and functional information, and can interface with MES systems and pre- and post-process equipment.

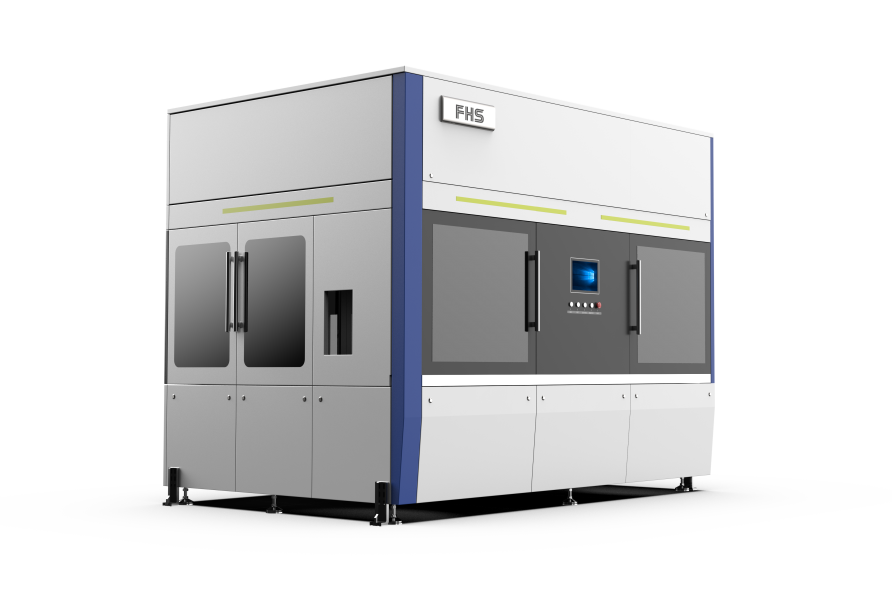

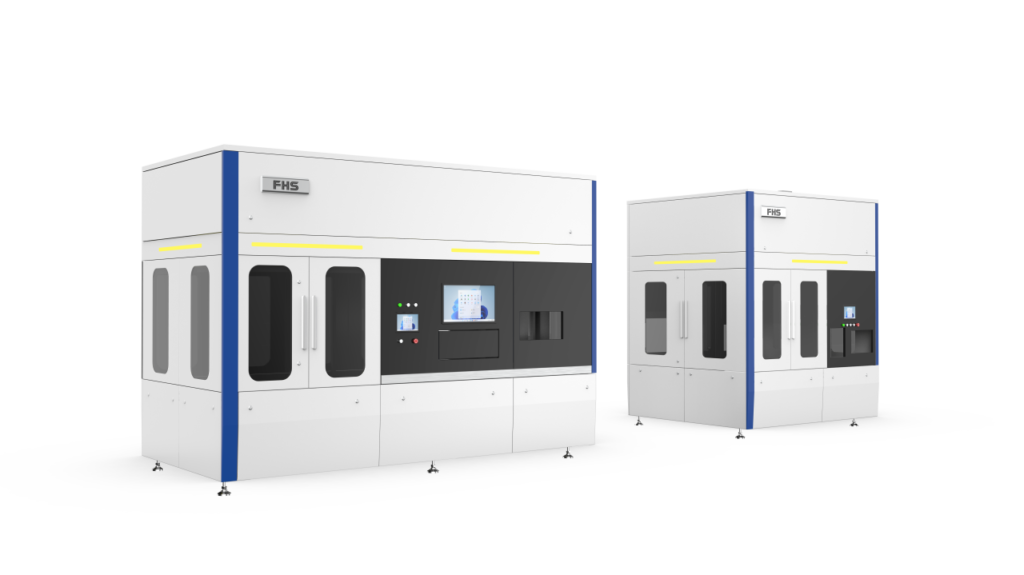

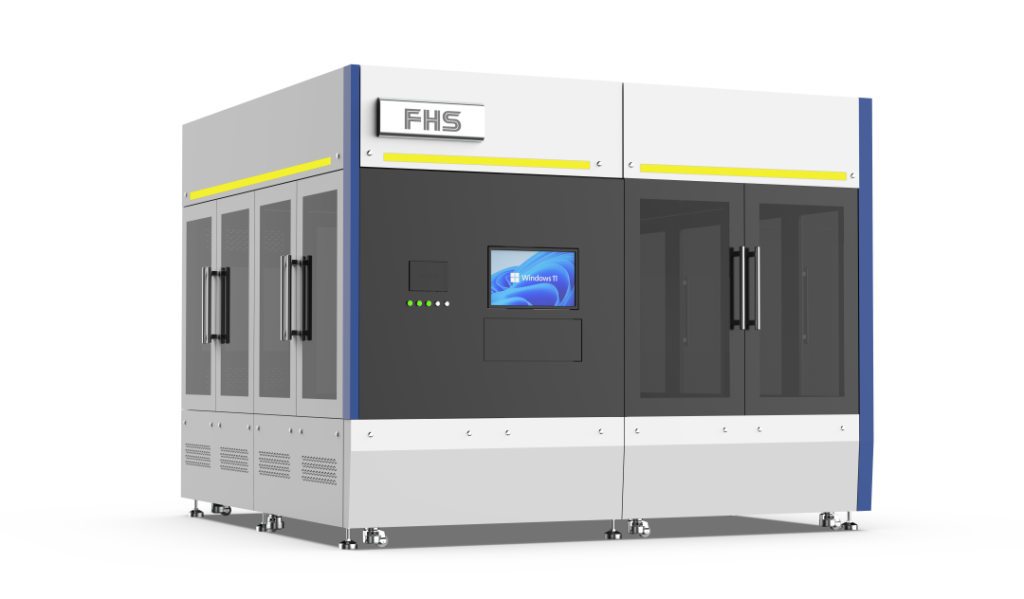

4680 Positive and negative collecting fluid laser welding machine

Briefly explain the main functions:

• The main functions of this device include scanning and feeding battery cells, NG (non-good) removal, good product pairing, compaction, size measurement, positive current collection material loading, negative current collection material loading, positive current collection welding, negative current collection welding, dust removal and regular sampling inspection for tensile force, insulation testing, positive electrode solder joint inspection, negative electrode solder joint inspection, adhesive bonding, tape inspection for presence, NG removal, and other functions.
• This part of the equipment automatically realizes the binding and storage of barcode information and functional information and can interface with MES systems and pre- and post-process equipment.
• Single line equipment production capacity ≥ 120PPM

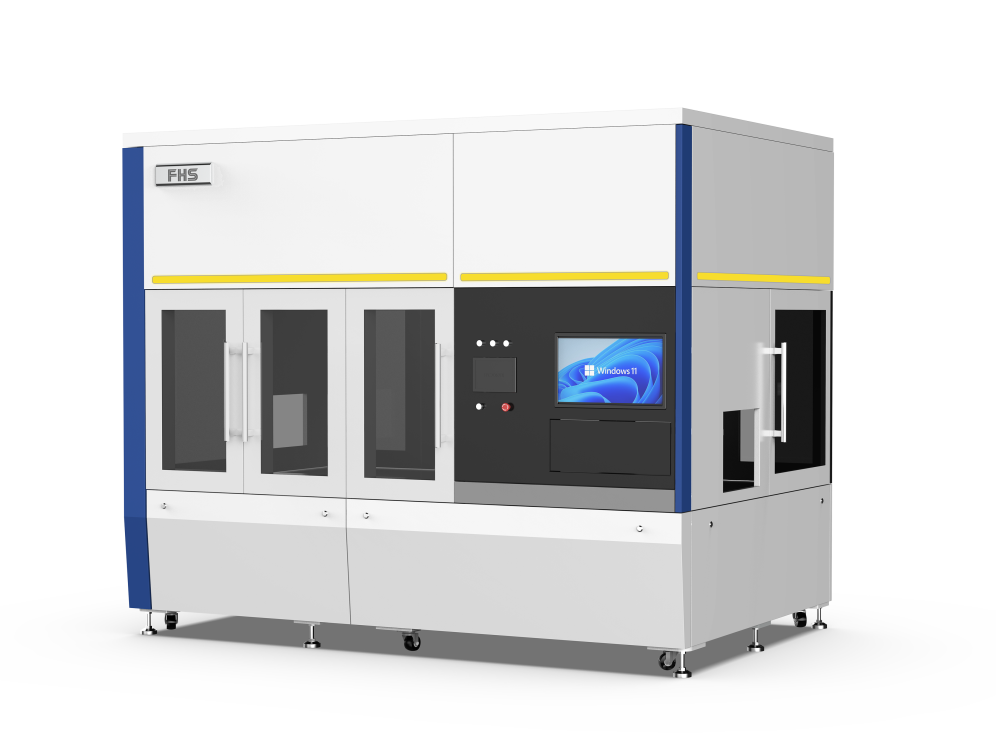

4680 high-speed shell feeding machine

Briefly explain the main functions:

• The main functions of this device include cell feeding, flow pulling ring, flow pulling ring outflow, incoming shell flow pulling ring entry, polarity inspection, entering the main rotating tower, installing insulation sheets (insulation sheet punching, electrostatic removal, double row to single row, incoming pulling ring, line buffering, entering the rotating tower, vacuum adsorption), detection of presence, steel shell entering the main rotating tower (steel shell incoming material, steel shell shaping and inspection diameter, steel shell dust removal), transition star wheel, CCD inspection, NG (non-good) removal, line caching, 180-degree flipping, shell flow loop backflow, current exchange loop, and good product output functions.
• This part of the equipment automatically realizes the binding and storage of barcode information and functional information and can interface with MES systems and pre- and post-process equipment.
• Single line equipment production capacity ≥ 200 PPM

4680 high-speed positive electrode ultrasonic torque welding machine

Briefly explain the main functions:

• The main functions of this device include scanning and feeding of battery cell stars, inspection of core holes in battery cells, NG removal, main cam on battery cell, following ultrasonic torque welding, 4mm endoscope inspection of solder joints, star wheel cutting, NG removal, and other functions;
• This part of the equipment automatically realizes the binding and storage of barcode information and functional information and can interface with MES systems and pre- and post-process equipment.
• Single line equipment production capacity ≥ 200 PPM

4680 High-speed negative electrode and shell welding machine

Briefly explain the main functions:

• The main functions of this device include scanning the battery cell star wheel code NG removal, detachment pull ring, fixture pressure negative electrode, entering the main star wheel, finding MARK points to follow welding, welding dust removal, welding CCD inspection, installation of flow pull ring Functions such as HI-POT testing, NG removal, and good product output;
• This part of the equipment automatically realizes the binding and storage of barcode information and functional information and can interface with MES systems and pre- and post-process equipment.
• Single line equipment production capacity ≥ 200 PPM

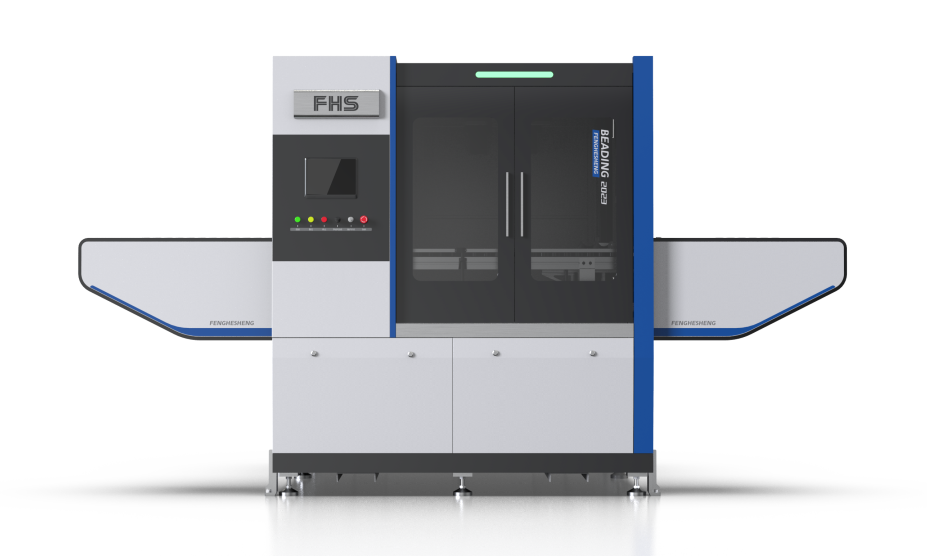

4680 high-speed groove rolling machine

Briefly explain the main functions:

• The main functions of this device include screw feeding, star wheel automatic core conveying, cam mode automatic groove rolling, height synchronous automatic compensation with the feed rate of the rolling cutter, synchronous online vacuum cleaning, automatic cutting, defective product removal, and carrier circulation transmission (the rolling cutter automatically adds DMC and synchronously performs online vacuum cleaning, with CCD detection of gasket flying out after rolling groove, groove size, pole ear position detection, automatic cutting, and defective product removal);
• This part of the equipment automatically realizes the binding and storage of barcode information and functional information and can interface with MES systems and pre- and post-process equipment.
• Single line equipment production capacity ≥ 200 PPM

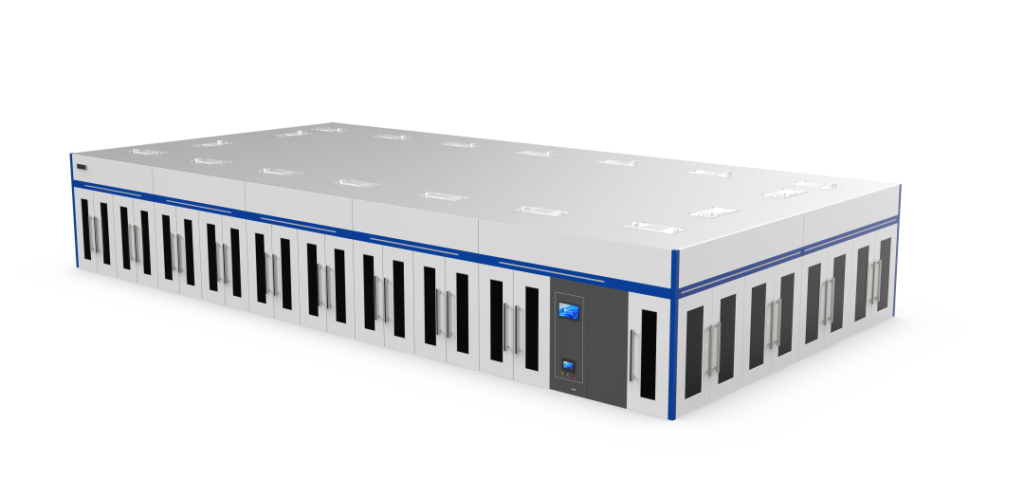

4680 Equal pressure injection machine

Briefly explain the main functions:

• The main functions of this device include battery scanning and feeding, pre battery weighing NG removal, battery transplantation into trays, tray scanning and binding, combination of battery trays and cup trays, airtightness testing, liquid injection, pressure settling, separation of cup trays and battery trays, cleaning of cup trays, battery tray cutting, weighing into battery trays after weighing, liquid replenishment, and NG removal for airtightness;
• The entire line equipment automatically realizes the binding and storage of battery barcode information, airtightness detection, and liquid injection information, and can interface with MES systems and pre – and post process equipment.
• Single line equipment production capacity ≥ 200 PPM

4680 High-speed non-polar cover plate assembly machine

Briefly explain the main functions:

• The main functions of the device include automatic star wheel scanning of the battery and star wheel feeding, NG (non-good) removal, cover plate star wheel feeding, main cam feeding, cover plate inspection for presence or absence, automatic feeding of cover caps, NG product removal, fixture positioning, and circular conveying functions;
• The device automatically binds and saves battery barcode information and device functional information and can interface with MES systems and pre- and post-process equipment.
• Single line equipment production capacity ≥ 200 PPM

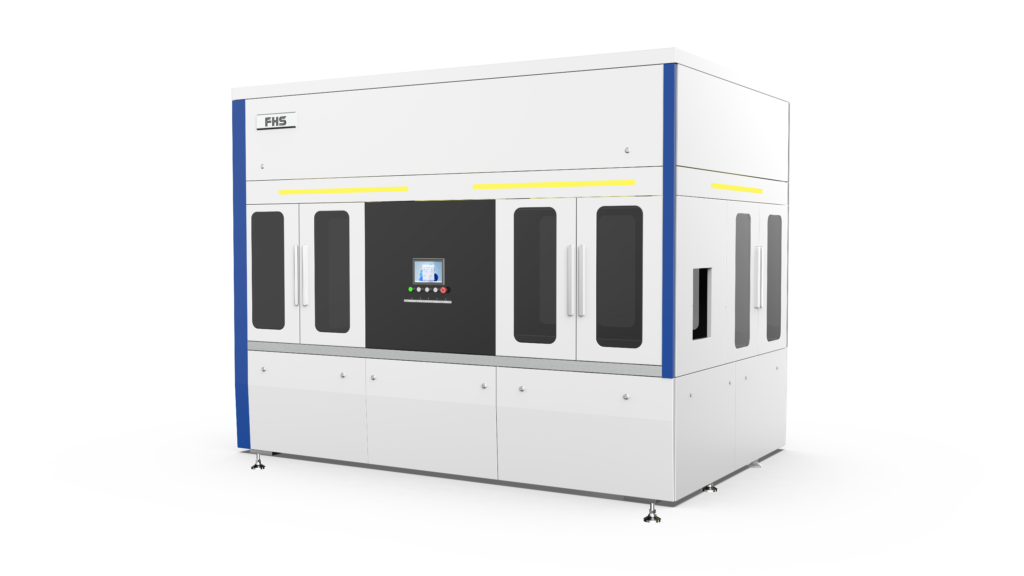

4680 High-speed sealing machine

Briefly explain the main functions:

• The main functions of the equipment include battery screw feeding, star wheel transition, flow ring separation and cover plate inspection & ion dust removal, entering the first sealing rotary tower, first sealing, transition star wheel, entering the second sealing rotary tower, second sealing, transition star wheel, height detection, flow ring combination & ion dust removal, and star wheel discharge；
• This part of the equipment automatically realizes the binding and storage of barcode information and functional information and can interface with MES systems and pre- and post-process equipment.
• Single line equipment production capacity ≥ 200 PPM

4680 High-speed pier sealing machine

Briefly explain the main functions:

• The main functions of the equipment include battery screw feeding, star wheel transition, separation and cover plate inspection of flow rings, entering the sealing rotary tower, pier sealing, transition star wheel, height detection, merging of the battery and flow rings, star wheel discharge, and other functions;
• This part of the equipment automatically realizes the binding and storage of barcode information and functional information and can interface with MES systems and pre- and post-process equipment.
• Single line equipment production capacity ≥ 200 PPM

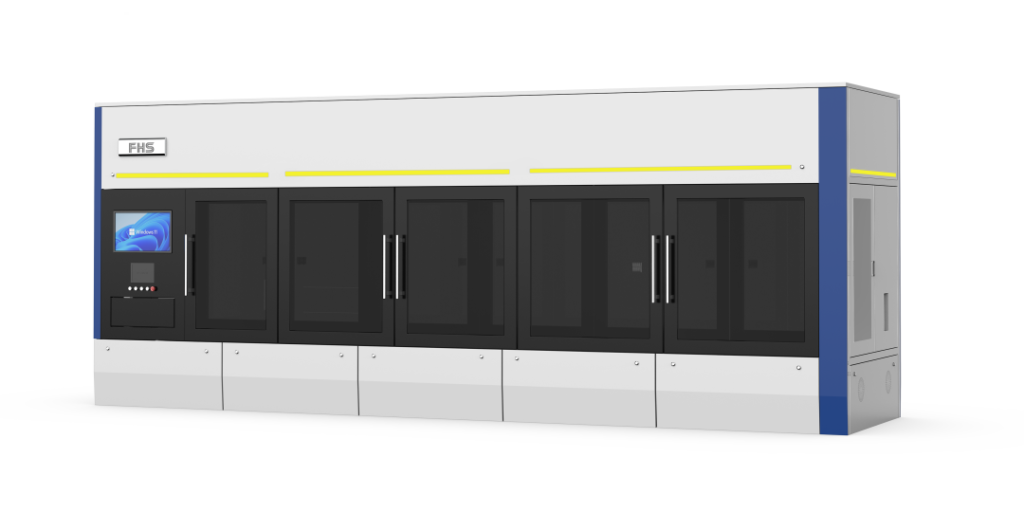

4680 High-speed cleaning machine

Briefly explain the main functions:

• The main functions of this equipment are battery screw feeding, transition star wheel, flow ring separation, transition star wheel, battery body cleaning, transition star wheel, battery upper and lower end cleaning, transition star wheel, star wheel group water removal, transition star wheel, drying, star wheel transition, oiling, star wheel transition, drying, star wheel transition, feeding to flow ring, star wheel unloading, etc;
• Functional composition, in which the cleaning solvent is municipal water, and the oil is provided by Party A. During the transportation process, the battery is rotated to ensure that there are no dead corners to be cleaned. High pressure water spraying is used in conjunction with a rotating brush to brush away stubborn stains. Then, the battery is dried with hot air, oil mist is coated with oil, and hot air-drying forms an oil film, which is automatically discharged. The water used for cleaning the battery can be recycled.
• This part of the equipment automatically realizes the binding and storage of barcode information and functional information and can interface with MES systems and pre- and post-process equipment.
• Single line equipment production capacity ≥ 200 PPM

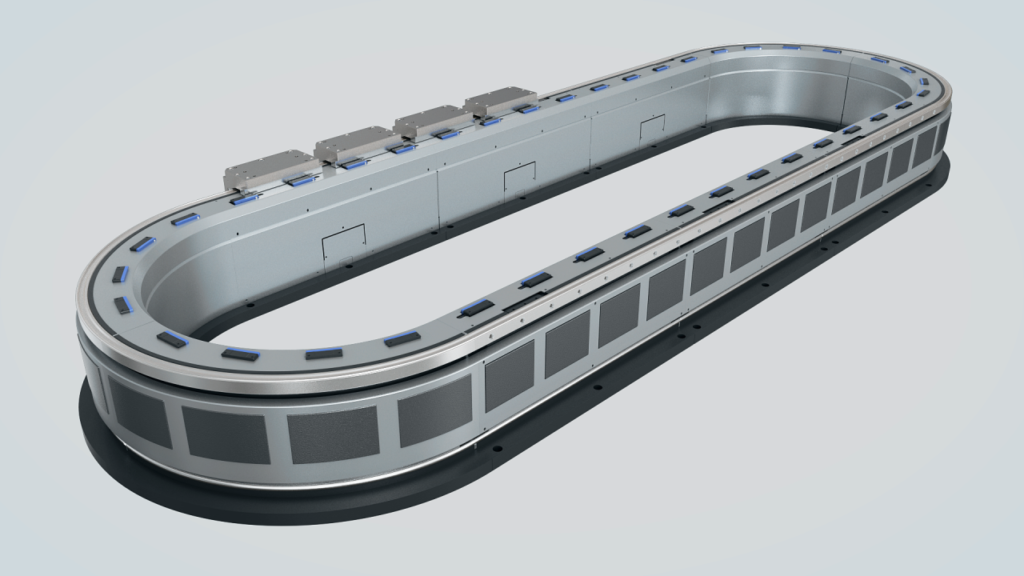

Self-developed mechanism combining magnetic levitation and conventional conveyor lines

• The flexible conveying line includes a series of standardized module components such as longitudinal conveying module, transverse conveying module, curved curve, synchronous belt, chain plate, material tray, support profile, positioning and guidance.
• Users can quickly and flexibly build various required assembly conveyor lines through simple assembly combinations.
• Magnetic levitation technology, magnetic motor module and multi slider system (with magnetic components selected according to load), capable of multiple backflow and multiple turnouts, and can be ferried.
• The load can reach 20 kilograms, the speed is ≥ 5 meters/second, and the repeated position accuracy can reach ± 0.01 mm.
• Effectively improving the flexibility and intelligence of traditional conveyor lines, the freely configurable linear system is easy to integrate into existing conveyor assembly systems.
• Intelligence and flexibility are supplements to traditional transportation assembly solutions. Through magnetic levitation technology, accurate, flexible, and stable transportation and positioning are achieved, greatly saving costs and improving efficiency.
