≥80-150 M/Min

Efficiency

≥ 99.5%

Yield

≤ 1%

Failure Rate

Introduction

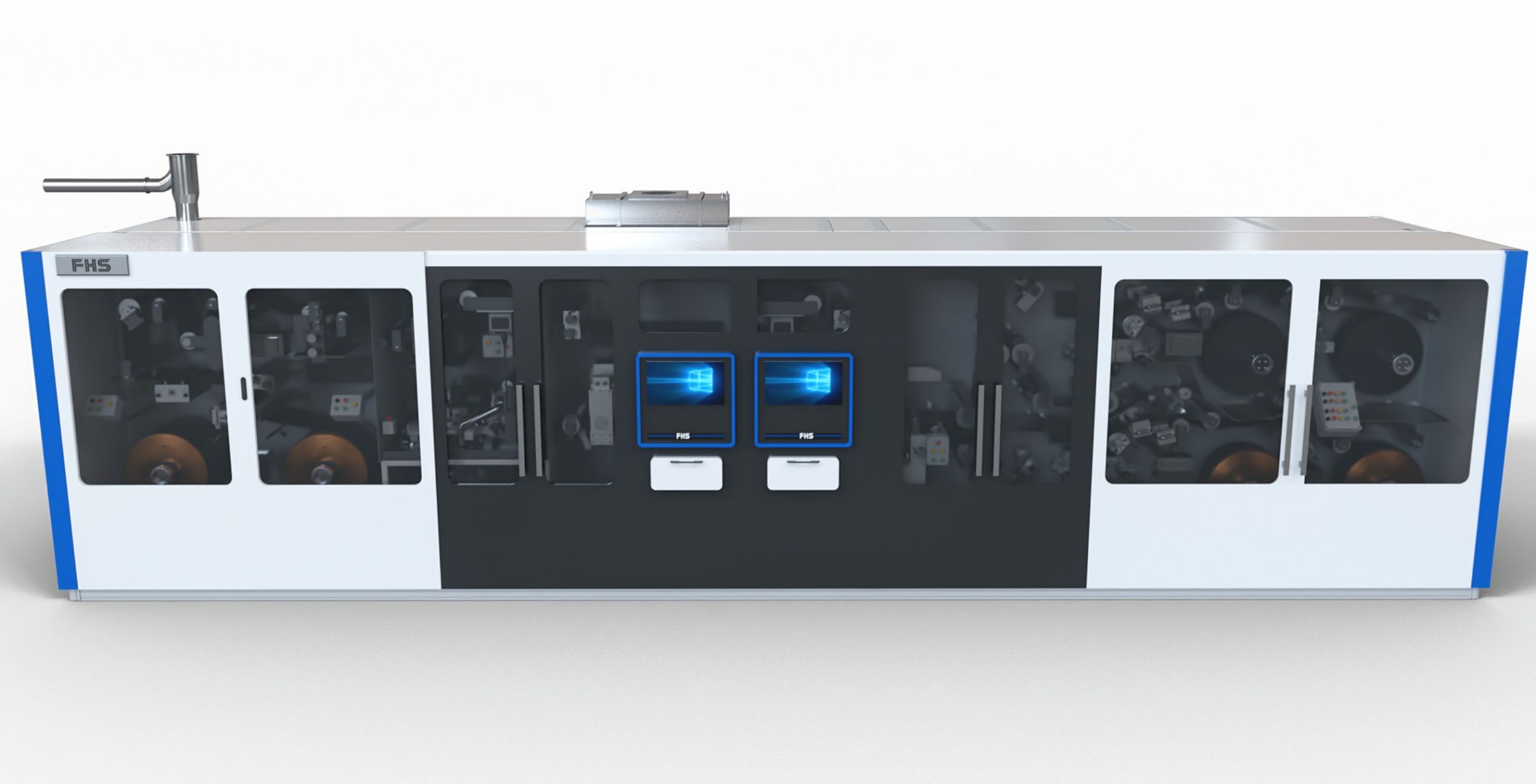

The equipment is mainly used for pole ear forming and pole cutting of rolled pole pieces (continuously coated pole pieces).

Highlights

  • Wide compatibility: Compatible with a width of 150 mm-500 mm, compatible with borderless and edge cutting, compatible with single-sided and double-sided cutting, compatible with Mark holes on pole ears and plates
  • Intelligent fine control: Laser frequency conversion control, energy speed follows changes, one click type change, visual online monitoring, closed-loop control (tension, correction, cutting and dust removal wind speed)
  • Dust control: Unique cutting and dust removal control, with some areas of the equipment capable of reaching tens of thousands of levels

Equipment Size

9500*2200*2650mm

Efficiency

≥80-150M/Min

Qualified Rate

≥99.5%

Fault Rate

≤1%

Compatible Width

160-500mm

Compatible Roll Diameter

≥700-1000mm

Compatible Roll Weight

≥500-1000kg

Cutting Accuracy

≤0.3mm

Cutting Quality

Burrs on the coated end face ≤ 12 μ m,
and burrs on the uncoated end face ≤ 30 μ m;
