11s

Production Cycle Time

99%

Product Yield

Introduction

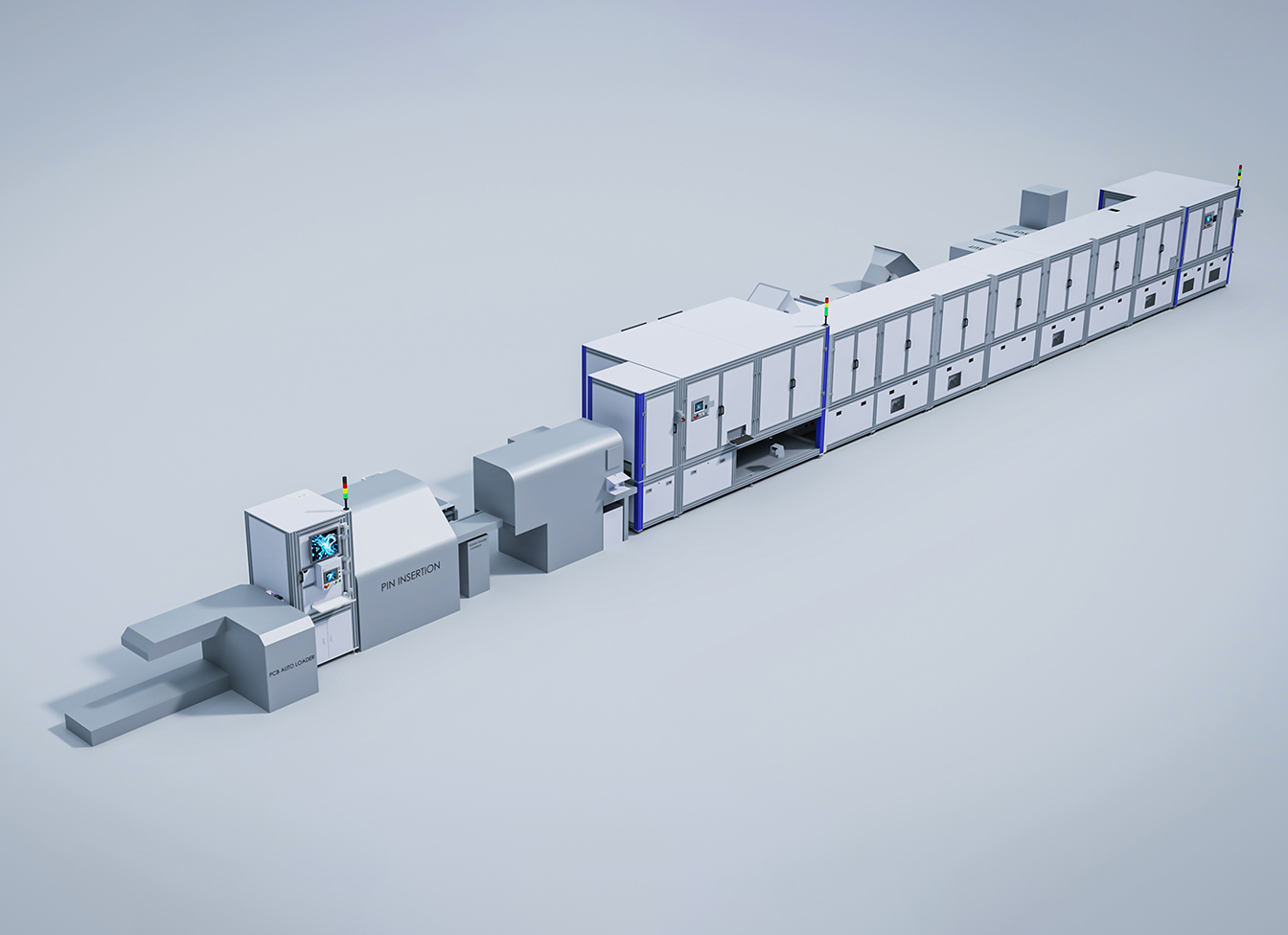

This equipment is for the assembly line of automotive electronic controllers, adopting a linear workstation layout. The equipment is connected in series through conveyor lines, ensuring the circulation of products between various workstations. The processes include PCB loading, software burning, component insertion, PCB slitting, ICT testing, upper and lower shell assembly, EOL testing, PIN detection and measurement, laser engraving and visual inspection, and finished product packaging. The entire assembly process of the electronic controller is fully automated. Multiple automatic abnormal material output processing ports are equipped to ensure a continuous and smooth assembly process.

Highlights

  • The equipment has been optimized and designed to recognize incoming product models based on scanning codes, automatically adjusting the width of the conveyor line to be compatible with various product productions.
  • The workstations and product process flows are reasonably arranged to significantly improve equipment efficiency.
  • Each process mechanism is reliably designed to ensure stable equipment operation.
  • The layout of manual operation workstations and operation ports is reasonable, making operation convenient and ensuring the continuity of equipment operation.

Parameters

Equipment Capacity

11s/pcs

Product Yield

99%

Equipment Utilization Rate

95%

Overall Size

25000mm×5000mm×2200mm
