±0.1 mm
Repetitive positioning accuracy
5 - 40 kg
Load range
100 N
Max. Thrust
2.5 m/s
Max. Speed

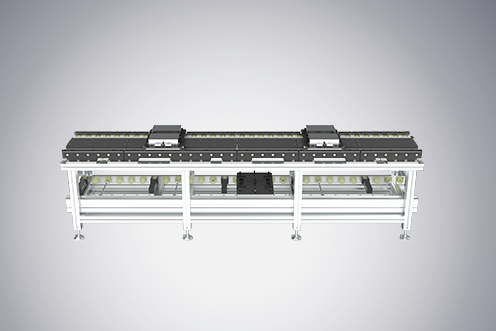

Product Highlights
- Flexible combination with traditional conveyor lines
- Multifunctional module supports lateral movement, lifting and rotation for seamless product transfer
- Mover pallets can be removed directly from the conveyor line, allowing for quick replacement
- Modular design adapts to various production needs
- Customizable workstations with expandable motor integrated modules and movers
- Designed for long-term use with multiple product iterations and process upgrades

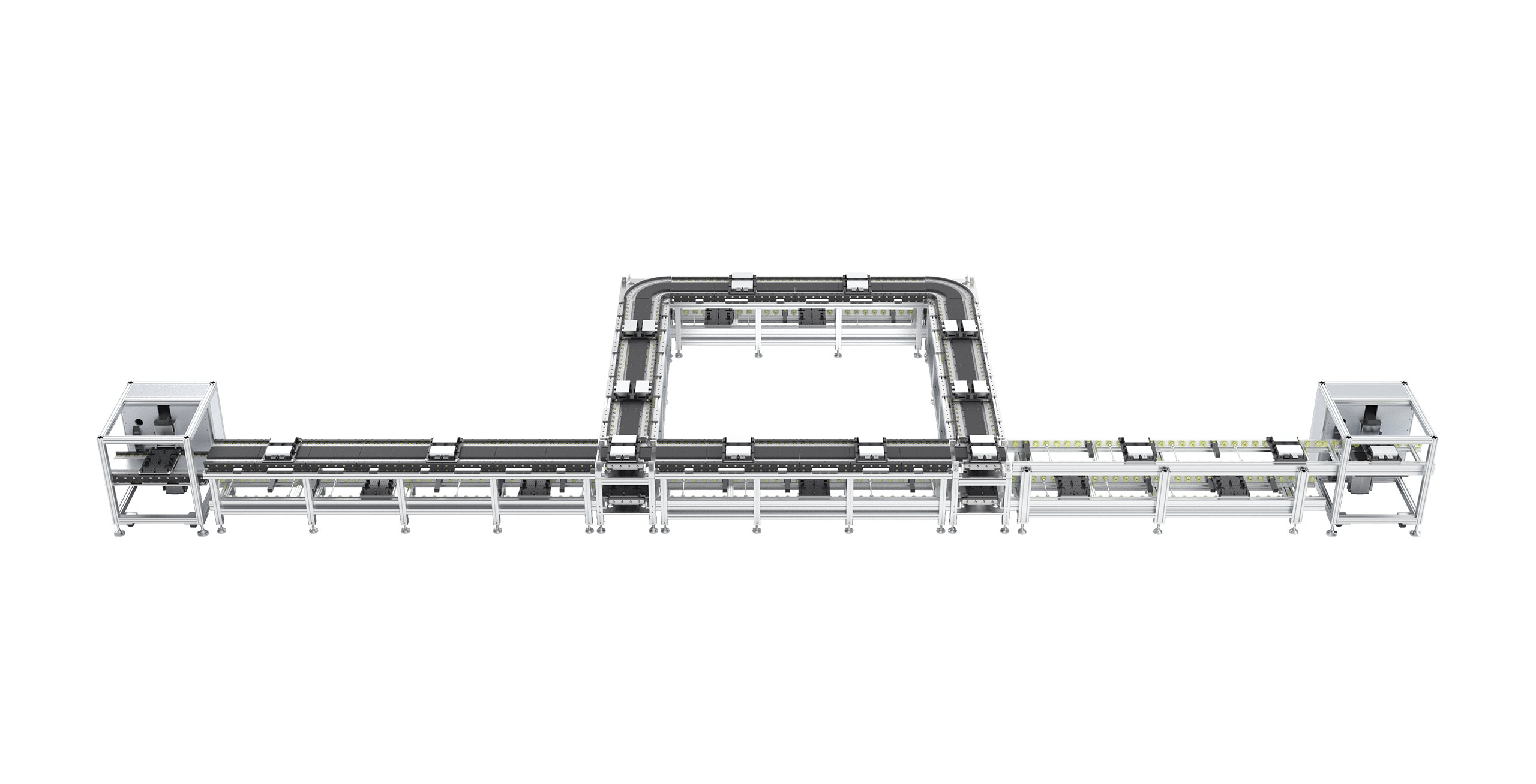

Application cases
Design Focus: Automation of fluorescence PCR processes in the medical industry.
Processes Automated: Information processing, centrifugation, cap removal, sample storage, etc.
Key Modules: Tipping sample loading module, high-surge tray loading module, low-temperature centrifuge module, cap-removal and sorting block, emergency priority loading module, off-line sorting and sample output module, on-line refrigerator (5000-tube capacity) module, on-line refrigerator (3000-tube capacity) module, capping module, on-line sampling connections for biochemical analyzers (FX8 mode), on-line sampling connections for chemiluminescence analyzers (A2000Plus mode), and a secondary cap removal module, etc.
Advantages:
Circular track system, Large load capacity, Enhanced stability;
Expandable Layout;
RFID technology, tube information binding, full-process traceability of information.
Thrust Value of Motor Integrated Module
| Motor integrated module | C050 | ||
| Magnetic plate width (mm) | 80 | 120 | 160 |
| Peak thrust (N) | 50 | 75 | 100 |
| Motor integrated module | C050 | ||
| Magnetic plate width (mm) | 80 | 120 | 160 |
| Peak thrust (N) | 50 | 75 | 100 |
Basic Parameters of FTS - MT Logistics Lines
Typical load
≤40 kg
Max. Speed
2.5 m/s
Repetitive positioning accuracy
±0.1 mm
Power supply voltage
DC 48V
Configuration software
iFTS-Studio
Communication interfaces
EtherCAT Modbus/TCP PROFINET CC-Link CANopen POWERLINK
Max. Number of modules
255
Max. Number of movers
255
Production line expandability
Both software and hardware support modular expansion
