≥500PPM

Operating Speed

≥99.8%

Product Qualification Rate

≤2%

Failure Rate

Introduction

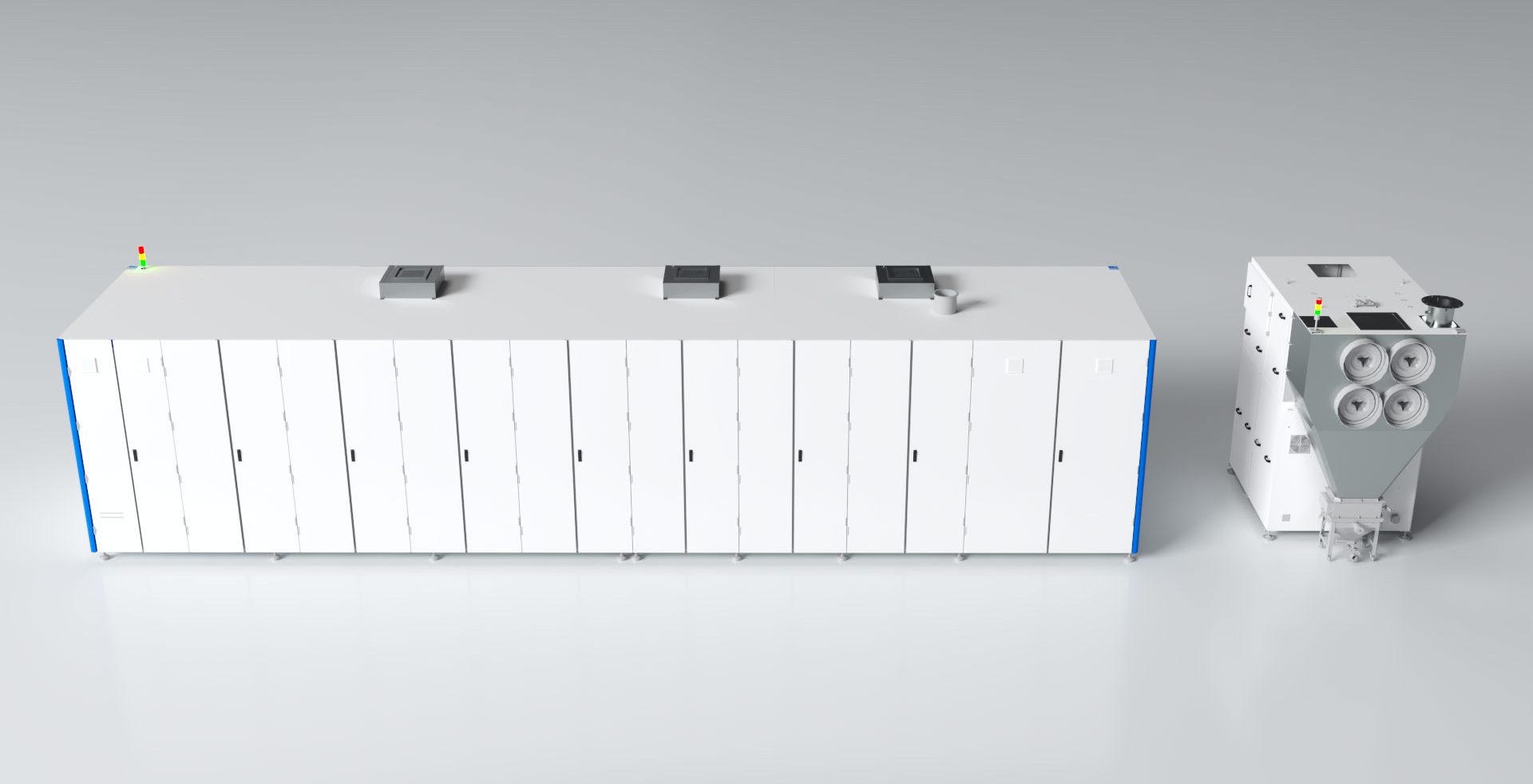

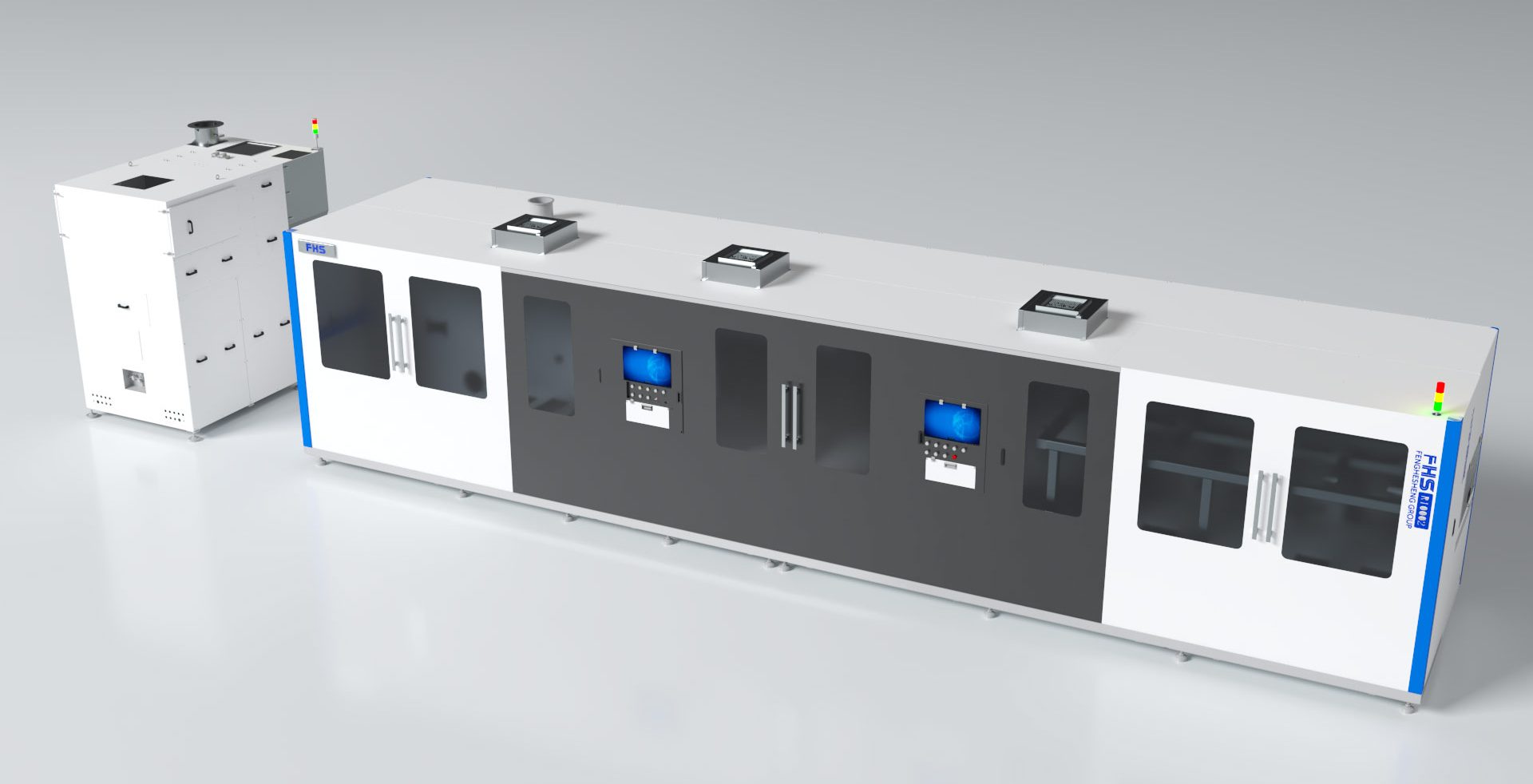

The equipment is mainly used for tab die-cutting and slicing of coiled electrode(continuously coated electrode).

Highlights

  • High speed and precision: Production efficiency ≥ 500ppm, accuracy ≤ ± 0.3mm, die cutting accuracy ≤ ± 0.2mm.
  • Core autonomy: Independently developed laser control, laser energy tracking, multi-stage control, and customizable development.
  • Quick and efficient type change: Incorporates a specification card library file, supporting one click type change.
  • Easy maintenance: Utilizes a modular design, enabling disassembly and structural replacement in maintenance area, sufficient maintenance space.
  • Multistage dust removal: A multi-level dust removal system that meets the standard of tens of thousands of levels, with local areas reaching thousands of levels.

Equipment Dimensions(mm)

11000*2300*2500

Speed

≥500PPM

Yield

≥99.8%

Failure Rate

≤2%

Compatible Chip Width

90-140mm

Compatible Width

150-600mm

Coiling Diameter

≤1000mm

Weight

≤800kg

Tab Precision

≤±0.2mm

Burrs Cutting

Tab burrs cutting by laser≤15μm, burrs cutting by cutting knife≤7μm
